Updated, now that I’ve found out how to directly enter a character code
Updated again. I’ve lost all the uploads to this site, so while the tables might still be useful, you’ll need to generate the characters youself if you want to see them.
If you’re the curious type (quite possible) and you’ve been playing with an Allen Bradley Micro810 (less likely) you might have wondered what special characters you can put on the screen.
And you’d stay curious if you tried to find the answer in the Allen Bradley Documentation, because it’s shit: It doesn’t even tell you how many characters there are on a each line. Incidentally, the answer is 16.
So, in an attempt to remedy the situation, I wrote a simple program which displays every character. Unfortuantely this was lost, but it shouldn’t be hard to re-create it. You will need Connected Components Workbench.
Entering the characters into strings is pretty easy – just type $ followed by the 2 digit Hex code. e.g. ‘Hello$21’ would appear as Hello!.
The first 32 are dramatically different to the ASCII standard, and well worth knowing about, but there are a few others different 5C,5E & 7F. Codes 80 to FF are less useful, but there are a few accented characters in there that might be of use, depending on which language you use.

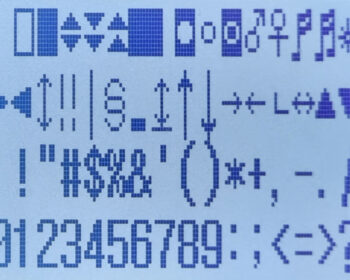

Characters 00 – 3F (0-63)
Loads of goodies in here, look!
| HEX |
DEC |
Symbol |
ASCII Description |
Micro810 Display |
| 00 |
0 |
NUL |
Null char |
Space |
| 01 |
1 |
SOH |
Start of Heading |
Empty Box |
| 02 |
2 |
STX |
Start of Text |
Filled Box |
| 03 |
3 |
ETX |
End of Text |
Up/down arrows |
| 04 |
4 |
EOT |
End of Transmission |
Double down arrow |
| 05 |
5 |
ENQ |
Enquiry |
Double Up arrow |
| 06 |
6 |
ACK |
Acknowledgment |
Filled Box |
| 07 |
7 |
BEL |
Bell |
Vertical Bar |
| 08 |
8 |
BS |
Back Space |
Filled box with hole |
| 09 |
9 |
HT |
Horizontal Tab |
Circle |
| 0A |
10 |
LF |
Line Feed |
Filled box with circle |
| 0B |
11 |
VT |
Vertical Tab |
Male Symbol |
| 0C |
12 |
FF |
Form Feed |
Female Symbol |
| 0D |
13 |
CR |
Carriage Return |
1 musical note |
| 0E |
14 |
SO |
Shift Out / X-On |
2 musical notes |
| 0F |
15 |
SI |
Shift In / X-Off |
Star |
| 10 |
16 |
DLE |
Data Line Escape |
Right Arrow |
| 11 |
17 |
DC1 |
Device Control 1 (oft. XON) |
Left arrow |
| 12 |
18 |
DC2 |
Device Control 2 |
Up/down arrow thin |
| 13 |
19 |
DC3 |
Device Control 3 (oft. XOFF) |
Something, not sure what |
| 14 |
20 |
DC4 |
Device Control 4 |
Vertical line |
| 15 |
21 |
NAK |
Negative Acknowledgement |
Section sign |
| 16 |
22 |
SYN |
Synchronous Idle |
Small filled box |
| 17 |
23 |
ETB |
End of Transmit Block |
Up/down arrow 3 |
| 18 |
24 |
CAN |
Cancel |
Up arrow thin |
| 19 |
25 |
EM |
End of Medium |
Down arrow thin |
| 1A |
26 |
SUB |
Substitute |
Right arrow thin |
| 1B |
27 |
ESC |
Escape |
Left arrow thin |
| 1C |
28 |
FS |
File Separator |
Small “L” |
| 1D |
29 |
GS |
Group Separator |
Lef/Right arrow thin |
| 1E |
30 |
RS |
Record Separator |
Up Arrow |
| 1F |
31 |
US |
Unit Separator |
Down arrow |
| 20 |
33 |
|
Space |
|
| 21 |
33 |
! |
Exclamation mark |
|
| 22 |
34 |
“ |
Double quotes (or speech marks) |
|
| 23 |
35 |
# |
Number |
|
| 24 |
36 |
$ |
Dollar |
|
| 25 |
37 |
% |
Percentage |
|
| 26 |
38 |
& |
Ampersand |
|
| 27 |
39 |
‘ |
Single quote |
|
| 28 |
40 |
( |
Open parenthesis (or open bracket) |
|
| 29 |
41 |
) |
Close parenthesis (or close bracket) |
|
| 2A |
42 |
* |
Asterisk |
|
| 2B |
43 |
+ |
Plus |
|
| 2C |
44 |
, |
Comma |
|
| 2D |
45 |
– |
Hyphen |
|
| 2E |
46 |
. |
Period, dot or full stop |
|
| 2F |
47 |
/ |
Slash or divide |
|
| 30 |
48 |
0 |
Zero |
|
| 31 |
49 |
1 |
One |
|
| 32 |
50 |
2 |
Two |
|
| 33 |
51 |
3 |
Three |
|
| 34 |
52 |
4 |
Four |
|
| 35 |
53 |
5 |
Five |
|
| 36 |
54 |
6 |
Six |
|
| 37 |
55 |
7 |
Seven |
|
| 38 |
56 |
8 |
Eight |
|
| 39 |
57 |
9 |
Nine |
|
| 3A |
58 |
: |
Colon |
|
| 3B |
59 |
; |
Semicolon |
|
| 3C |
60 |
< |
Less than (or open angled bracket) |
|
| 3D |
61 |
= |
Equals |
|
| 3E |
62 |
> |
Greater than (or close angled bracket) |
|
| 3F |
63 |
? |
Question mark |
|
Characters 40-7F
Most of these are pretty similar to standard ASCII, but with a few exceptions
| HEX |
DEC |
Symbol |
ASCII Description |
Micro810 Display |
| 40 |
64 |
@ |
At symbol |
|
| 41 |
65 |
A |
Uppercase A |
|
| 42 |
66 |
B |
Uppercase B |
|
| 43 |
67 |
C |
Uppercase C |
|
| 44 |
68 |
D |
Uppercase D |
|
| 45 |
69 |
E |
Uppercase E |
|
| 46 |
70 |
F |
Uppercase F |
|
| 47 |
71 |
G |
Uppercase G |
|
| 48 |
72 |
H |
Uppercase H |
|
| 49 |
73 |
I |
Uppercase I |
|
| 4A |
74 |
J |
Uppercase J |
|
| 4B |
75 |
K |
Uppercase K |
|
| 4C |
76 |
L |
Uppercase L |
|
| 4D |
77 |
M |
Uppercase M |
|
| 4E |
78 |
N |
Uppercase N |
|
| 4F |
79 |
O |
Uppercase O |
|
| 50 |
80 |
P |
Uppercase P |
|
| 51 |
81 |
Q |
Uppercase Q |
|
| 52 |
82 |
R |
Uppercase R |
|
| 53 |
83 |
S |
Uppercase S |
|
| 54 |
84 |
T |
Uppercase T |
|
| 55 |
85 |
U |
Uppercase U |
|
| 56 |
86 |
V |
Uppercase V |
|
| 57 |
87 |
W |
Uppercase W |
|
| 58 |
88 |
X |
Uppercase X |
|
| 59 |
89 |
Y |
Uppercase Y |
|
| 5A |
90 |
Z |
Uppercase Z |
|
| 5B |
91 |
[ |
Opening bracket |
|
| 5C |
92 |
\ |
Backslash |
Weird Portcullis thing |
| 5D |
93 |
] |
Closing bracket |
|
| 5E |
94 |
^ |
Caret – circumflex |
Right arrow tall (Cursor) |
| 5F |
95 |
_ |
Underscore |
|
| 60 |
96 |
` |
Grave accent |
|
| 61 |
97 |
a |
Lowercase a |
|
| 62 |
98 |
b |
Lowercase b |
|
| 63 |
99 |
c |
Lowercase c |
|
| 64 |
100 |
d |
Lowercase d |
|
| 65 |
101 |
e |
Lowercase e |
|
| 66 |
102 |
f |
Lowercase f |
|
| 67 |
103 |
g |
Lowercase g |
|
| 68 |
104 |
h |
Lowercase h |
|
| 69 |
105 |
i |
Lowercase i |
|
| 6A |
106 |
j |
Lowercase j |
|
| 6B |
107 |
k |
Lowercase k |
|
| 6C |
108 |
l |
Lowercase l |
|
| 6D |
109 |
m |
Lowercase m |
|
| 6E |
110 |
n |
Lowercase n |
|
| 6F |
111 |
o |
Lowercase o |
|
| 70 |
112 |
p |
Lowercase p |
|
| 71 |
113 |
q |
Lowercase q |
|
| 72 |
114 |
r |
Lowercase r |
|
| 73 |
115 |
s |
Lowercase s |
|
| 74 |
116 |
t |
Lowercase t |
|
| 75 |
117 |
u |
Lowercase u |
|
| 76 |
118 |
v |
Lowercase v |
|
| 77 |
119 |
w |
Lowercase w |
|
| 78 |
120 |
x |
Lowercase x |
|
| 79 |
121 |
y |
Lowercase y |
|
| 7A |
122 |
z |
Lowercase z |
|
| 7B |
123 |
{ |
Opening brace |
|
| 7C |
124 |
| |
Vertical bar |
|
| 7D |
125 |
} |
Closing brace |
|
| 7E |
126 |
~ |
Equivalency sign – tilde |
|
| 7F |
127 |
|
Delete |
Square Root sign |
Characters 80-BF
A couple of accented letters, but not much else.
Characters C0-FF
A solitary asian symbol (I have no idea which language it’s from) and some more accents.
